ICOM IC-2300H Radio RIG Original
ICOM IC-2300H Radio RIG Original Berkualitas
ICOM IC-2300H Radio RIG adalah alat komunikasi yang dapat dijadikan sebagai base station dan dapat juga dijadikan sebagai alat komunikasi bergerak (mobile station) dengan power output 65 Watts
Features ICOM IC-2300H Radio RIG :
Stable 65W of output
Similar user interface retained from the IC-2200H
Proven durability – Tested to the latest MIL-STD-810 G Specifications
207 Alpha-Numeric memory channels
Built-in CTCSS and DTCS encoder/decoder
Stable 65W Of Output Power
The IC-2300H can generate 65W of output power. The rugged aluminum diecast chassis provides effective heat dissipation and keeps RF output even during high duty cycle continuous transmission. Output power is selectable in 4-steps (65/25/10/5W*). * Depending on version.
A Total Of 207 Memory Channels
The IC-2300H has a total of 207 memory channels, including 200 regular channels, 6 scan edges and 1 call channel. The channel name is programmable with 6 characters for easy recognition.
Tested To The MIL-STD 810 G Specifications
The IC-2300H is built tough to protect from a rough road. It has been tested to and has passed the latest MIL-STD 810 G specifications including shock, vibration and temperature tests.

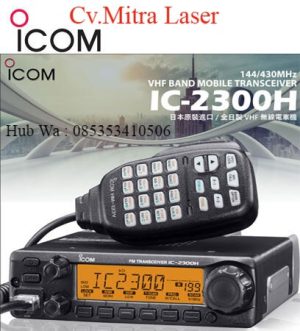

[caption id="attachment_4828" align="alignnone" width="136"]
ICOM IC-2300H Radio RIG[/caption]
Fitur Lainnya Icom IC-2300H
- Power supply voltage display
- Wide/narrow channel setting
- 4.5 W (typical) loud audio
- Reduced depth dimensions
- DTMF autodial
- Time-out timer
- Repeater lockout
- Automatic power off
- S-meter squelch
- Selectable LCD backlight color (amber, yellow and green)
- Weather channel receive and alert function (USA version only)
- Automatic repeater function (USA version only)
- Selectable squelch delay from short and long
- Squelch attenuator reduces suppression from strong signals
- PC to transceiver and transceiver to transceiver cloning capability
Spesifikasi Icom IC-2300H
| GENERAL | |
| Frequency coverage | TX 144–148MHz |
| RX 136–174MHz | |
| Mode | F2D, F3E |
| No. of memory channels | 207 (including 6 scan edges and 1 call) |
| Frequency resolution | 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50kHz |
| Operating temp. range | –20°C to +60°C; |
| 14°F to +140°F; | |
| Frequency stability | ±3ppm (–10°C to +60°) |
| Power supply requirement: | 13.8V DC ±15% |
| Current drain (at 7.4V DC): | 11A |
| Transmit at 65W | 0.4A |
| Receive Stand-by | 1.5A |
| Receive Max. audio | |
| Antenna impedance | 50Ω (SO-239) |
| Dimensions (W×H×D) | 140×1.57×162 mm; 5.51×1.57×6.38 in |
| (projections not included) | |
| Weight (approx.) | 1Kg; 2.43lb |
| TRANSMITTER | |
| Modulation system | Variable Reactance |
| Output power | 65/25/10/5W |
| Spurious emissions | Less than –60dBc (High, Mid) |
| Max. deviation | ±5.0/2.5 kHz wine/narrow) |
| Microphone impedance | 60Ω (8-pin modular) |
| RECEIVER | |
| Receiver system | Double superheterodyne |
| Intermediate frequency | 46.35MHz/450kHz (1st/2nd) |
| Sensitivity | Less than 0.18μV at 12dB SINAD |
| Squelch Sensitivity | Less than 0.13μV at threshold |
| Selectivity | More than ±6kHz/6dB |
| Wide | More than ±14kHz/60dB |
| More than ±3kHz/6dB | |
| Narrow | More than ±9kHz/55dB |
| Spurious rejection | More than 60dB |
| Audio Output Power | 4.5W (typ.) |
| External speaker connector | 2-conductor 3.5(d) mm 1/8″/4Ω |
Applicable U.S. Military Specifications
| Standard | MIL-810 G | |
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
