HT Motorola SL1M
HT Motorola SL1M VHF/UHF Berkualitas Premium
HT Motorola Mototrbo SL1M atau yang biasa orang sebut motorola slim merupakan generasi digital dengan bentuk yang tipis dan memiliki layar depan berupa hidden LED untuk memudahkan mengecek menu. Keunggulan lainnya adalah colokan charger yang familiar berupa micro USB dan bisa juga untuk kabel program.
Spesifikasi Motorola SL1M
| GENERAL | ||
| VHF | UHFBAND 1 | |
| Display | Display | |
| Frequency | 136-174 MHz | 403-470 MHz |
| Channel Capacity | 256 | |
| Typical RF Output | ||
| Low Power Output | 1W | |
| High Power Output (• with Range Max technology) | ||
| Analog | 2W | |
| Digital | 3W | |
| Dimensions (H x W x L) | 4.95 X 2.17 x 0.87 in (125.7 X 55.0 X 22.0 mm) | |
| Weight with Battery | 5.76 oz/ 163.4 g | |
| Power Supply | 3.7V (Nominal) | |
| Battery Life [Li-Ion (2300mAh) Battery] | ||
| Analog (hours) | 11.8* | |
| Digital (hours) | 14* | |
| FCC Description | AZ489FT3835 | AZ489FT4922 |
| IC Description | 109U-89FT3835 | 109U-89FT4922 |
| TRANSMITTER | ||
| Channel Spacing | 12.5 kHz / 25 kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | |
| Low Power Output | 1W | |
| High Power Output | ||
| Analog | 2W | |
| Digital | 3W | |
| Modulation Limiting | ± 2.5 kHz @ 12.5 kHz ± 5.0 kHz @ 25 kHz |
|
| FM Hum and Noise | -40 dB @ 12.5 kHz -45 dB @ 25 kHz |
|
| Conducted / Radiated | -36 dBm < 1 GHz | |
| Emission | -30 dBm > 1 GHz | |
| Adjacent Channel Power | 60 dB @ 12.5 kHz 70 dB @ 25 kHz |
|
| Audio Response | TIA603D | |
| Audio Distortion | 3% (typical) | |
| 4FSK Digital Modulation | 12.5kHz Data: 7K60F1D & 7K60FXD 12.5kHz Voice: 7K60F1E & 7K60FXE Combination of 12.5kHz Voice and Data: 7K60F1W |
|
| Digital Vocoder Type | AMBE +2™ | |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |
| RECEIVER | ||
| Channel Spacing | 12.5 kHz / 25 kHz | |
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | |
| Analog Sensitivity (12 dB SINAD) | 0.3 uV 0.22 uV (typical) |
|
| Digital Sensitivity (5% BER) | 0.25 uV 0.19 uV (typical) |
|
| Intermodulation (TIA603D) | 70dB | |
| Adjacent Channel Selectivity (TIA603D) | 45 dB @ 12.5 kHz 70 dB @ 25 kHz |
|
| Spurious Rejection (TIA603D) | 70 dB | |
| Rated Audio | 0.5 W (Internal) | |
| Audio Distortion @ Rated Audio | 5% (3% typical) | |
| Hum and Noise | -40 dB @ 12.5 kHz -45 dB @ 25 kHz |
|
| Audio Response | TIA603D | |
| Conducted Spurious Emissions (TIA603D) | -57 dBm | |
| *Average battery life at 5/5/90 duty cycle, transmitter in high power. Actual battery runtime observed may vary. | ||
| Specifications subject to change without notice. All specifications shown are typical. | ||
Aksesoris Motorola SL1M
- Baterai
- Desktop Charger
- Adaptor Charger
- Belt Clip

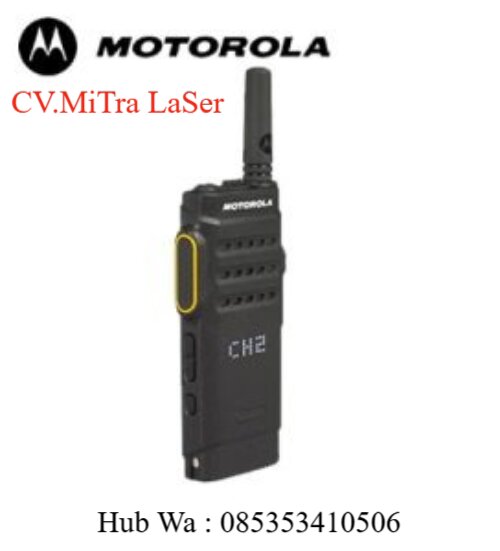

HT Motorola SL1M[/caption]
