Fusion Splicer SKYCOM T-307H Designed for FTTH ORIGINAL
Fusion Splicer SKYCOM T-307H
Fusion Splicer merk Skycom
Tipe baru T-307H
Model lebih kecil , ringkas, dan lebih akurat dari T-208H
Key Features:
1 Quick splicing time: 6 seconds
2 Quick heating time: 15 seconds
3 More Portable design
Specifications:
Applicable Fibers : SM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss : 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss : ≥60dB
Quick splicing time : 8 seconds
Quick heating time : 18 seconds
Protection Sleeve Length : 40mm, 45mm, 60mm
Splicing Program : 50 groups
Operating Language : Chinese, English, French, Portuguese, Spanish, Italian, Indonesian
Operating Conditions : -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply
AC input AC adaptor: 100~240V input voltage, 50/60Hz;
DC input 12V, 5A output voltage(DC)
Battery Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat
Monitor : Dual cameras, 90bi-dirctional view ,4.3 inches high resolution colorful LCD display
Fiber Image Magnification : X or Y Separately 400 times or Simultaneously 200 times
Estimated Splice Loss : Available
Cleaving Angle Detection : Available
Tension Test : 1.96~2.25N
Storage of Splice Result : 6,000 groups of latest splice results
Splicing Model : Auto & Manual & Full Auto & Stepping
Optical Fiber Fixture : 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)
Terminal : USB for Memorizing and Updating
Dimensions : 120(W)*120(D)*130(H)mm
Weight : 1.29Kg(without battery)
High Speed Splicing and Heating,
6 seconds Rapidly Splicing, 15 seconds Quick Heating
Greater Accuracy
Digital Imaging and Vision Processing Metro logy Ensure Great Accuracy
New Developed Technology for Smaller Size and Convenient Multipurpose Clamps
3-in-1 Universal Holder
Applicable Cleaved Length up to 5mm
5200mAh, Ultra-high Battery
Automatic Detection
Multistage Amplification, Magnification up to 520X Which Makes Clear Image
Size：12cm*12cm*12cm
Weight：1.29kg
Lengkap aksesoris + Cleaver + Stripper + Spare Elektroda

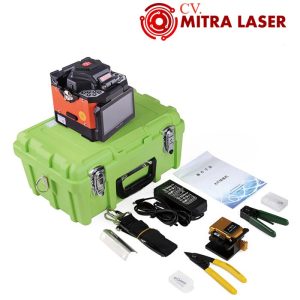

[caption id="attachment_6978" align="alignnone" width="150"]
Fusion Splicer SKYCOM T-307H[/caption]
