Fusion Splicer SIGNAL FIRE AI6A NEW 6 MOTOR SPLICER
Fusion Splicer SIGNAL FIRE AI6A
FUSION SPLICER AI6A AI 6A SIGNAL FIRE AI-6A ORIGINAL AI6 NEW 6 MOTOR SPLICER
SIGNAL FIRE Ai6a+ (6 Motor)
Signal Fire Ai6a+ dgn Box seperti Signal Fire Ai9 yg kokoh dan lebih mewah serta elegan
Plus + harga yg sama murahnya dengan Ai6a
Specifications:
| Fiber Alignment | Core alignment, cladding alignment |
| Motor Number | 6 motors |
| Splicing Time | 8S |
| Heating Time | 18S, can be customized according to the external environment |
| Applicable Fibers | Single-mode fiber (SMF/G.652), BIF/G.657); suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion |
| Cladding Diameter | 80~150um |
| Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
| Splicing Mode | Automatic focusing core alignment, conventional / high precision welding |
| Splicing Method | Automatic, semi-automatic |
| Fiber Holder | 3-in-1 fiber holder, no need to change, suitable for single/muti-mode, multi-core cable, 250um/900um/2mm/3mm/2*3mm flat drop cable |

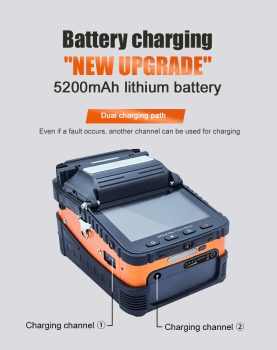

| Inbuilt Battery | 5200mAh high capacity lithium battery, charging time ≤3.5 hours, continuous splicing and heating about 160 times |
| Magnification | 320 for X or Y view, 200 for X or Y view |
| Fiber Diameter | Cladding diameter: 80~150um, Coating diameter: 100~1000um |
| Fiber Cleave Length | Coating less than 250um diameter: 8~16mm; Coating between 250~1000um: 16mm |
| Tension Test | Standard 2N |
| Protective Sleeve | 25/40/45/50/60mm |

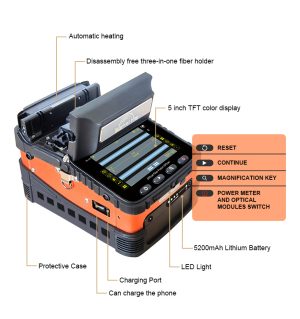

| Screen | 5 inch TFT color display |
| External Lighting | USB PORT can be connected with external LED light, convenient for night construction |
| Charge Mobile Device | USB port can charge mobile devices such as mobile phones |
| Boot Time | 1s, boot can enter the working mode |
| Data Storage | Unlimited, machine storage: 1,000 groups, the excess datas can be stored in the server, which can export data. |
| Wirelss Communication | Based on bluetooth 4.2 protocol standard, working band: 2.4GHz, maximum transmission range: 60m |
| Software Upgrade | Mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software |
| Management Function | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. Through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multipleequipment. |
| Interface | USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices |
| Return Loss | Better than 60dB |
| Product Protection | Waterproof, dustproof and fall proof |
| Power Supply | Input: 100～240VAC 50/60Hz, output 13.5VDC, 4.8A, the current power mode can be identified, real-time monitoring of current battery level |
| Operation Conditions | -15～+50℃, 0～95%RH (humidity), 0～5000m (altitude), max. Wind speed: ≤15m/s |
| Language Setting | English, Chinese, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic |

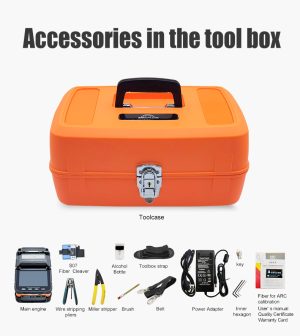

Kelengkapan Fusion Splicer Ai-6A (6 Motor) :
- 1 unit MESIN SPLICING + baterai - 1 set BOX - 1 set HOLDER SOC - 1 set CHARGER - 1 set CLEAVER+kunci L - 1 unit STRIPPER - 1 unit BOTOL ALKOHOL - 1 unit kuas pembersih dll
[caption id="attachment_6992" align="alignnone" width="119"]
Fusion Splicer SIGNAL FIRE AI6A[/caption]
