INNO Instrument VIEW 8X Premium Core Alignment Fusion Splicer
The INNO Instrument VIEW 8X Premium Core Alignment Fusion Splicer is a top-tier device designed for precision and efficiency in fiber optic splicing.
Here are its detailed features and specifications:
Key Features:
- AI-Driven Splicing: Utilizes artificial intelligence to enhance splicing accuracy and efficiency.
- IoT & GPS Integration: Equipped with IoT and GPS modules for real-time tracking and management.
- Fast Operation: Splicing time of 4 seconds and heating time of 9 seconds.
- High Precision: Ensures ultra-low splice loss for high-quality connections.
- User-Friendly Interface: Features a 5-inch high-resolution color LCD touch screen for easy operation.
- Durable Design: Built to withstand harsh environments, making it suitable for both field and lab use.
- Battery Life: Long-lasting battery that supports up to 355 splicing and heating cycles per charge.
- Storage Capacity: Can store up to 10,000 splice results.
Specification
General |
|
| Model | VIEW 8X |
| Alignment Method | Core Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) / CS (G.654) / EDF / BIF |
| Coating Diameter | 100µm – 3mm |
| Cladding Diameter | 80 – 150µm |
| Cleave Length | 5 – 16mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss | >>60dB |
| Splice Time | Quick mode: AVG. 4 sec. / SM: AVG. 5 sec. / Auto mode: AVG. 7 sec. |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic ARC Calibration by Air Pressure & Temperature |
| Electrode Life Span | 6000 ARC Discharge |
| Heating Programs | Max. 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve | 20mm – 60mm |
| Data Output | Cloud (View Pro Manager) + USB-C |
| Splice Memory | 20.000 Splice data / 10.000 Splice image |
| Battery | Battery Capacity: 9000mAh / Operation Cycle: 500 cycles (Splicing + Heating) |
| Power Supply | AC Input 100 – 240V, DC Input 9 – 19V |
| Monitor | 5.0” Color LCD Display, Full Touch Screen |
| Magnification | x360, x520 |
| Fiber View | X, Y, XY, X/Y |
| Dimension | 162 x 143 x 158mm |
| Weight | 2.68kg |
| Pull Test | 1.96 – 2.25N |
| *Splicing Time: Measured from the time of fibers entering the screen until the estimated loss is displayed. Splicing time can vary depending on the calibration status. *Battery: Measured as 1-minute cycle of splicing and heating. Measured in Power Save Mode. |
|
Dimension and Weight |
Height: 162mm Width: 143mm Depth: 158mm Weight: 2.68kg |
Environmental Condition and Test |
|
| Operating Conditions | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
| Storage Conditions | Humidity: 0 – 95%, non-dew Temperature: -40 to 80°C |
| Resistance Test | Shock Resistance: 76cm for bottom surface drop. Exposure to Dust: 0.1 to 500um diameter aluminum silicate (IP5X) Rain Resistance: 10 mm/h for 10 mins (IPx2) |
Package List |
Fusion Splicer (VIEW 8X) Cleaver (V12) SOC Holder (FH-SOC-R) SOC Heater Cover (HTS-SOC-06) AC Adaptor (JS-180300) Cooling Tray (CG-25) Electrodes (E-70) Battery Pack (LBT-30) Power Cable (ACC-25) USB Cable (USB-8P) USB Cable (USB-9P) Carrying Case (ICC-55) Shoulder Strap (ST-01) |

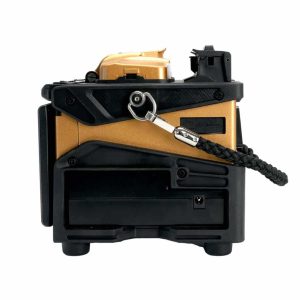

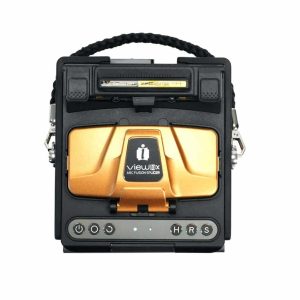

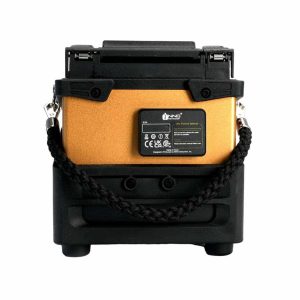

Fusion Splicer INNO VIEW 8X[/caption]
