Fusion Splicer INNO VIEW 6S ORIGINAL
Fusion Splicer INNO VIEW 6S

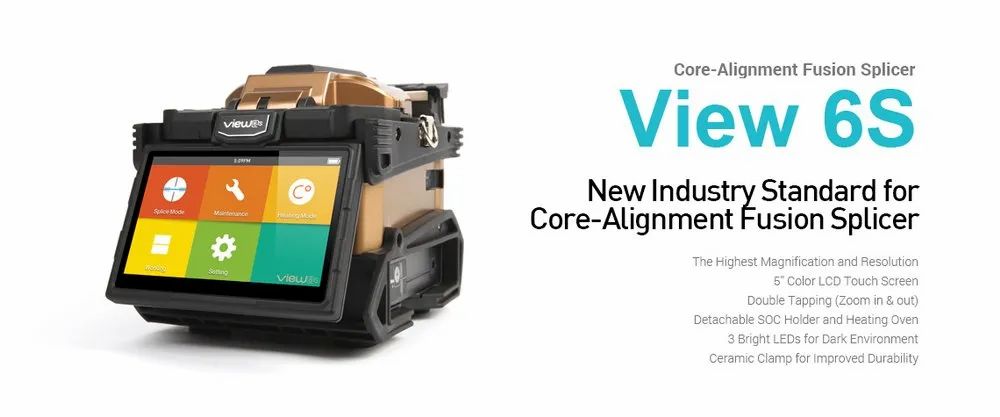

INNO Instrument VIEW 6S Exclusive Core-Alignment Fusion Splicer
The INNO Instrument VIEW 6S is a high-performance core-alignment fusion splicer designed for precision and efficiency in fiber optic splicing.
Here are its key features and specifications:
Key Features:
- Core Alignment with DACAS: Utilizes Digital Analysis Core Alignment System for accurate splicing.
- 5-inch Color LCD Touch Screen: High-resolution display with an intuitive graphical user interface (GUI).
- Double Tapping Zoom: Allows up to 520x magnification for clear fiber viewing.
- Fast Heating Time: Typical 13 seconds, enhancing work efficiency.
- Short Cleave Length Splicing Capability: Suitable for 5mm cleave length, ideal for splice-on connectors.
- Detachable SOC Holder and Heating Oven: Adds flexibility for various splicing needs.
- Three Bright LEDs: Provides ample lighting for dark environments.
- Ceramic Clamp: Improved durability for long-term use.
Specifications:
-Dimensions: 152H x 147W x 175D mm
-Weight: Approximately 2.43 kg (with battery)
-Splice Time: Typical 9 seconds
-Heating Time: Typical 13 seconds
-Battery Capacity: Up to 200 cycles (splicing and heating)
-Magnification: Up to 520x for clear fiber viewing
-Compatible Fibers: SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
-Cleaved Length: 5-16 mm
-Operating Conditions: -10°C to 50°C, 0-95% relative humidity.
This fusion splicer is particularly effective in the FTTx field and is designed to meet the needs of major telecommunications operators.
Fusion Splicer INNO VIEW 6S[/caption]
