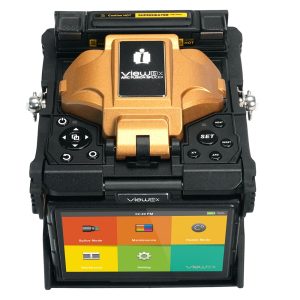

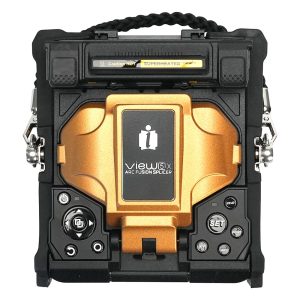

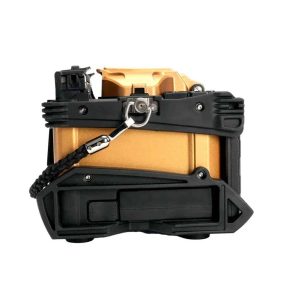

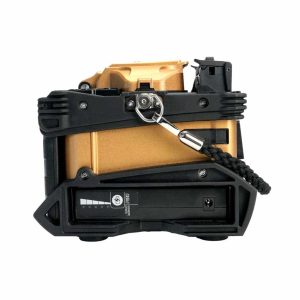

INNO Instrument VIEW 5X Core Alignment Fusion Splicer
The INNO Instrument VIEW 5X is a high-performance core alignment fusion splicer designed for precision and efficiency.
Here are its key features and specifications:
Key Features:
- Core Alignment: Utilizes DACAS (Digital Analysis Core Alignment System) for precise fiber alignment.
- AI-Driven Features: Enhances splicing accuracy and operational efficiency.
- IoT & GPS Modules: Embedded for real-time tracking and management.
- 5” Color LCD Touch Screen: High-resolution display with double-tapping for zooming in and out.
- Detachable SOC Holder and Heating Oven: For flexibility and convenience.
- 3 Bright LEDs: Provides illumination in dark environments.
- Ceramic Clamp: Ensures improved durability.
Specification Overview INNO View 5X
Splicing Technology : Core Alignment
Splicing Time : 4s
Heating Time : 9s
Typical Loss : SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB
Dimensions
Size (HWD) : H: 151mm W: 149mm D: 177mm
Weight : 2.35kg (with battery)
Specifications
| Model | VIEW5X |
| Fiber Alignment Mode | Core Alignment |
| Number of Fiber | Single |
| Applicable Fibers | SM (ITU-T G.652 & T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter | 150µm – 3mm |
| Cladding Diameter | 80 – 150µm |
| Cleave Length | 5 – 16mm |
| Typical Splice Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Return Loss | >>60dB |
| Splice Time | Quick mode: Avg. 4 sec. / SM mode: Avg. 5 sec. / Auto mode: Avg. 7 sec. |
| Splice Programs | Max. 300 modes |
| Automatic Calibration | Automatic ARC Calibration by Air Pressure & Temperature |
| Electrode Life Span | 6000 ARC Discharge |
| Heating Programs | Max. 100 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve | 20mm – 60mm |
| Data Output | Cloud (View Pro Manager) + USB-C |
| Splice Memory | 20,000 Splice data / 10,000 Splice image |
| Battery | Battery Capacity: 5200mAh / Operation Cycle: 300 cycles (Splicing + Heating) |
| Power Supply | AC Input 100 – 240V, DC Input 9 – 14V |
| Monitor | 5.0” Color LCD display, Full Touch Screen |
| Magnification | X320, X520 |
| Dimension | 151 (H) x 149 (W) x 177 (D) mm |
| Weight | 2.35kg |
| Pull Test | 1.96 – 2.25N |
| Operating Condition | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
| Storage Condition | Humidity: 0 – 95%, non-dew Temperature: -20 to 60°C |
| Resistance Tests | Shock Resistance: 76cm for bottom surface drop Exposure to Dust: 0.1 to 500um diameter aluminium silicate Rain Resistance: 10 mm/h for 10 mins |
Standard Package :
Fusion Splicer View 5X
Cleaver V12
Fiber Holder
SOC Fiber Fiber Holder
SOC Heating Cover
AC Adapter
Power Cable
Cooling Tray
Spare Electrode E-70
Battery Pack (5200mAh) LBT-52
USB Cable
OTG
Carrying Case
Work Station
2Bh Shoulder Strap
Quick Refference
Sim Ejector
2Bh Work Tray Bold
Fusion Splicer INNO VIEW 5X[/caption]
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
