Fusion Splicer INNO VIEW 3X ORIGINAL
Fusion Splicer INNO VIEW 3X
Fusion Splicer INNO Instrument VIEW 3X
INNO Instrument VIEW 3X Active V-Groove Cladding Alignment Fusion Splicer
The INNO Instrument VIEW 3X is an advanced fusion splicer designed for precision and efficiency in fiber optic splicing.
Here are its key features and specifications:
Features:
- Active V-Groove Cladding Alignment: Ensures precise fiber positioning for reliable splices.
- AI-Driven Features: Enhances splicing accuracy and efficiency.
- Embedded IoT & GPS Modules: Facilitates real-time tracking and management.
- Rapid Splicing and Heating Times: Splicing time of 4 seconds and heating time of 9 seconds.
- User-Friendly Interface: Equipped with a high-resolution color LCD touch screen.
- Enhanced Security: Anti-theft protection and full access control with supervisor password.
- Real-Time Data Management: Syncs splice images and data for quality assessment and decision-making.
Specifications:
Typical Splice Loss:
Single Mode (SM): 0.03dB
Multi-Mode (MM): 0.01dB
Dispersion Shifted (DS): 0.05dB
Non-Zero Dispersion Shifted (NZDS): 0.05dB
G.657: 0.03dB
Dimensions: 151mm (H) x 149mm (W) x 177mm (D)
Weight: 2.19kg (with battery)
Splicing Technology: Active Cladding Alignment
Heating Time: 9 seconds
Splicing Time: 4 seconds
Specification Overview INNO View 3X
Splicing Technology : Active Cladding Alignment
Splicing Time : 4s
Heating Time : 9s
Typical Loss : SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB
Dimensions
Size (HWD) : H: 151mm W: 149mm D: 177mm
Weight : 2.19kg (with battery)
TECHNICAL SPECIFICATIONS
| Model | View 3X | |
| Number of fibers | Single | |
| Alignment method | Active V-Groove clad alignment | |
| Applicable fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) | |
| Coating diameter | 100 μm to 3 mm | |
| Cleave length | 5 to 16 mm | |
| Cladding diameter | 80 to 150 μm | |
| Splice programs | Maximal 128 modes | |
| Heating programs | Maximal 32 modes | |
| Typical splice loss | SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB | |
| Splice time (typical) | Quick mode: 4 seconds / SM mode 5 seconds | |
| Heating time | Quick mode: 9 seconds / Average: 13 seconds | |
| Protection sleeve length | 20 to 60 mm | |
| Display | 5” Color LCD display, Full Touch Screen | |
| Fiber view | X, Y, XY, X/Y | |
| Fiber display (magnification) | × 360 and × 520 | |
| Return loss | > 60 db | |
| Data storage | Last 20,000 (values) or 10,000 (images) results | |
| Pull test | 1.96 to 2.25 N | |
| Operation | Keys / Touchscreen | |
| Lighting | White LED | |
| Power supply | AC input 100 to 240 V / DC input 9 to 19 V | |
| Battery * | Capacity: 5,200 mAh / Typical operation cycles: 300 cycles (splicing and heating) | |
| Electrode life span | 6,000 arc discharges | |
| Data output | Cloud (View Pro Manager) and USB-C | |
| Dimensions in mm (Height × Width × Depth) | 151 × 149 × 177 | |
| Weight | 2.19 kg |
Standard Package :
Fusion Splicer View 3X
Cleaver V12
Fiber Holder
SOC Fiber Holder
SOC Heating Cover
AC Adapter
Power Cable
Cooling Tray
Spare Electrode E-70
Battery Pack (5200mAh) LBT-52
USB Cable
OTG Cable
Carrying Case
Work Station
2Bh Shoulder Strap
Quick Refference
2Bh Work Tray Bold
The VIEW 3X is designed to provide a reliable and efficient solution for fiber optic splicing, making it a valuable tool for professionals in the field

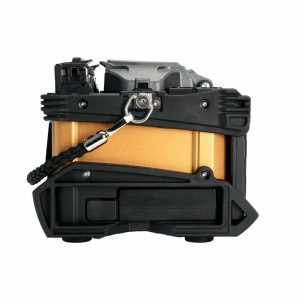

[caption id="attachment_6772" align="alignnone" width="150"]
Fusion Splicer INNO VIEW 3X[/caption]
