Fusion Splicer INNO i5 ORIGINAL
Fusion Splicer INNO i5

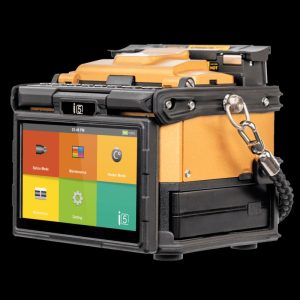

INNO Instrument i5 Core Alignment Fusion Splicer
The INNO Instrument i5 Fusion Splicer is a high-performance device designed for precision fiber splicing.
Here are its detailed features and specifications:
Key Features:
- Core Alignment: Ensures precise fiber alignment for high-quality splices.
- Fast Splicing and Heating Times: Splicing time of just 4 seconds and heating time of 13 seconds.
- Battery Capacity: Equipped with a large 7000mAh battery, capable of up to 400 cycles (splicing + heating).
- Display: Features a 5-inch color LCD with a full touch screen interface for an intuitive user experience.
- Data Storage: Can store up to 10,000 splice data entries and 10,000 splice images.
- Portability: Weighs 1.826 kg and has dimensions of 159mm (depth) x 131mm (width) x 145mm (height), making it suitable for fieldwork.
Specifications
General |
|
| Model | i5 |
| Alignment Method | Core Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652 & T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Cladding Diameter | 100µm – 3mm |
| Coating Diameter | 80 – 150µm |
| Cleave Length | 5 – 16mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss | >>60dB |
| Splice Time | Quick mode: AVG. 4 sec. / SM mode: AVG. 5 sec. |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic ARC Calibration by Air Pressure & Temperature |
| Electrode Life Span | 6000 ARC Discharge |
| Heating Programs | Max. 32 modes |
| Heating Time | 13 sec (45mm, 60mm slim) |
| Protection Sleeve | 20mm – 60mm |
| Data Output | USB-C |
| Splice Memory | 20.000 Splice Data / 20.000 Splice Image |
| Battery | Battery Capacity: 7000mAh / Operation Cycle: 400 cycles (Splicing + Heating) |
| Monitor | 5” Color LCD Display, Full Touch Screen |
| Magnification | x360, x520 |
| Pull Test | 1.96 – 2.25N |
| *Splicing Time: Measured from the time of fibers entering the screen until the estimated loss is displayed. Splicing time can vary depending on the calibration status. *Battery: Measured as 1-minute cycle of splicing and heating. Measured in Power Save Mode. |
|
| Dimensions and Weight | Height: 145mm Width: 131mm Depth: 160mm Weight: 1.826kg (with battery), 1.436 (without battery) |
| Environmental Condition and Test | |
| Operating Conditions | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
| Storage Conditions | Humidity: 0 – 95%, non-dew Temperature: -20 to 60°C |
| Resistance Test | Shock Resistance: 76cm for bottom surface drop Exposure to Dust: 0.1 to 500um diameter aluminium silicate (IP5X) Rain Resistance: 10 mm/h for 10mins (IPx2) |
Standard Package :
Fusion Splicer i5
Cleaver V1
SOC Fiber Fiber Holder
SOC Heating Cover
AC Adapter
Power Cable
Cooling Tray
Spare Electrode E-70
Battery Pack (7000mAh) LBT-7000
USB Cable
OTG
Carrying Case
Shoulder Strap
Quick Refference
Fusion Splicer INNO i5[/caption]
