Fusion Splicer INNO i4 Instrument Original
Fusion Splicer INNO i4 Instrument
INNO Instrument i4 Active V-Groove Cladding Alignment Fusion Splicer
The INNO Instrument i4 Fusion Splicer is a highly efficient and portable device designed for fiber optic splicing.
Here are the detailed features and specifications:

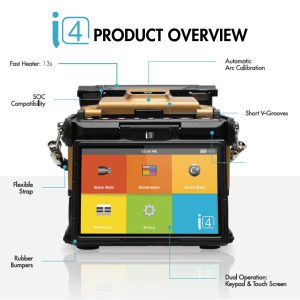

Key Features:
Active V-Groove Cladding Alignment: Ensures precise and efficient fiber alignment.
Fast Splicing and Heating Times: Splicing time of just 4 seconds and heating time of 13 seconds.
Battery Capacity: Equipped with a robust 3500mAh battery, capable of up to 200 cycles (splicing + heating).
Display: Features a 4.3-inch color LCD with a full touch screen interface for an intuitive user experience.
Data Storage: Can store up to 10,000 splice data entries and 10,000 splice images.
Portability: Weighs only 1.384 kg and has dimensions of 132mm (depth) x 137mm (width) x 130mm (height), making it ideal for technicians on the go.
Fusion Splicer INNO i4 Instrument
Specifications:
Splicing Time: 4 seconds.
Heating Time: 13 seconds.
Battery: 3500mAh, up to 200 cycles.
Display: 4.3-inch color LCD touch screen.
Weight: 1.384kg.
Dimensions: 132mm (D) x 137mm (W) x 130mm (H).
Data Storage: 10,000 splice data entries and 10,000 splice images.
This fusion splicer is known for its reliability, efficiency, and user-friendly design, making it a great choice for professionals in the field of fiber optics.
Specifications
General |
|
| Model | i4 |
| Alignment Method | Active V-Groove Clad Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652 & T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Cladding Diameter | 100µm – 3mm |
| Coating Diameter | 80 – 150µm |
| Cleave Length | 5 – 16mm |
| Typical Splice Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Return Loss | >>60dB |
| Splice Time | Quick mode: AVG. 4 sec. / SM Auto mode: AVG. 5 sec. |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic ARC Calibration by Air Pressure & Temperature |
| Electrode Life Span | 6000 ARC Discharge |
| Heating Programs | Max. 32 modes |
| Heating Time | 13 sec (45mm, 60mm slim) |
| Protection Sleeve | 20mm – 60mm |
| Data Output | USB-C |
| Splice Memory | 10.000 Splice Data / 10.000 Splice Image |
| Battery | Battery Capacity: 3500mAh / Operation Cycle: 200 cycles (Splicing + Heating) |
| Monitor | 4.3” Color LCD Display, Full Touch Screen |
| Magnification | x130, x320 |
| Pull Test | 1.96 – 2.25N |
| *Splicing Time: Measured from the time of fibers entering the screen until the estimated loss is displayed. Splicing time can vary depending on the calibration status. *Battery: Measured as 1-minute cycle of splicing and heating. Measured in Power Save Mode. |
|

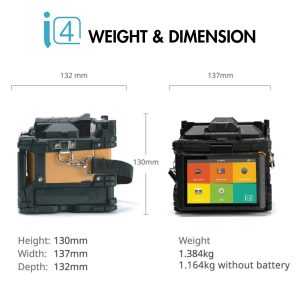

Dimensions and Weight |
Height: 130mm Width: 137mm Depth: 132mm Weight: 1.384kg (with battery), 1.164 (without battery) |
Environmental Condition and Test |
|
| Operating Conditions | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
| Storage Conditions | Humidity: 0 – 95%, non-dew Temperature: -20 to 60°C |
| Resistance Test | Shock Resistance: 76cm for bottom surface drop Exposure to Dust: 0.1 to 500um diameter aluminium silicate (IP5X) Rain Resistance: 10 mm/h for 10mins (IPx2) |
Fusion Splicer INNO i4 Instrument Original[/caption]
