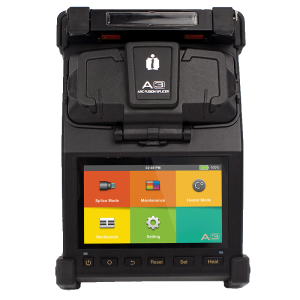

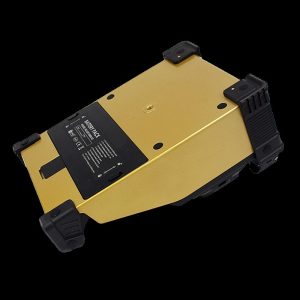

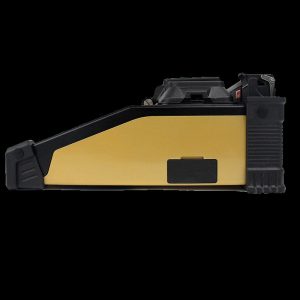

Fusion Splicer INNO A3 ORIGINAL
Fusion Splicer INNO A3
INNO A3 Fusion Splicer dengan desain produk yang sederhana namun trendi, struktur internal yang canggih, dan daya tahan yang andal membuat penyambung otomatis memberi pengguna kenyamanan yang luar biasa, cocok untuk lingkungan operasi apa pun.
Specification Overview
Jelajahi spesifikasi unggulan produk kami, yang dirancang dengan teknologi mutakhir untuk memberikan kinerja yang tak tertandingi. Setiap fitur dibuat untuk memastikan keandalan, efisiensi, dan kepuasan pengguna, meningkatkan pengalaman Anda dengan cara yang luar biasa.
Features Fusion Splicer INNO A3
Splicing Technology : Cladding Alignment (4 Motors)
Splicing Time : 7 seconds
Heating Time : 15 seconds
Typical Loss : SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB
Dimensions
Size (HWD) : 87 x 137 x 197 mm
Weight : 1.2 KG
Technical Specifications
| Model | A3 | ||
| Alignment Method | Active Clad Alignment (4 Motors) | ||
| Number of Fiber | Single | ||
| Applicable Fibers | SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G 653) / NZDS (ITU-T G.655) | ||
| Coating / Cladding Diameter | Coating Diameter : 100 – 3000μm, Cladding Diameter : 80 – 150μm | ||
| Cleaved Length | 5 – 16mm | ||
| Typical Splice Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (Measured by fusion splicing compensating cutback according to ITU-T standard) |
||
| Return Loss | >> 60dB | ||
| Estimated Splice Loss | Available | ||
| Splice Time | Quick mode 7s | ||
| Splice Mode | Preset 6 kinds of splicing mode, Max 320 mode available | ||
| Heating Sleeve | 20 – 60mm | ||
| Heating Time | 15s (45mm, slim 60mm), 20s (60mm) | ||
| Heating Mode | Max 32 modes | ||
| Tension Test | 1.96 – 2.25N | ||
| Dimension | 197W x 137D x 87H mm (including rubber bumper) / 187W x 128D x 82H mm (excluding rubber bumper) | ||
| Weight | 1.206kg (with battery) / 0.997kg (without battery) | ||
| White LED | 2 White LEDs | ||

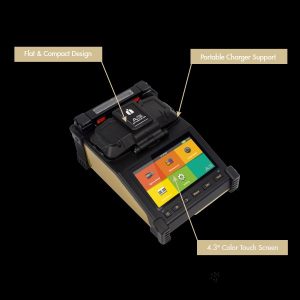

| Monitor | 4.3″ Color LCD display, Full touch screen | ||
| Fiber View | X, Y, X/Y | ||
| Magnification | 120 – 240x | ||
| Results Storage | 10,000 Splice data / 10,000 Splice image | ||
| Power Supply | AC Input 100 – 240V, DC Input 9 – 14V | ||
| Terminal | USB Type C | ||
| Battery Capacity | 3000mAh Battery Capacity, Typical 150 cycles (Splice + Heat), Power save mode 200 cycles (Splice + Heat) | ||
| Electrode Life | 5500 arcs discharges | ||
|
Environmental Condition & Test |
|||
| Operating Condition | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 – 50ºC Wind: up to 15m/sec |
||
| Storage Condition | Humidity: 0 – 95%, non-dew Temperature: -20 – 60 ºC |
||
| Resistance Tests | Shock Resistance : 76cm for bottom surface drop Exposure to Dust : 0.1 to 500um diameter aluminium silicate Rain Resistance : 10 mm/h for 10 mins |
||
| • Water resistance (IPx2) • Shock resistance (Drop from 76cm) • Dust resistance (IP5X)
* We do no guarantee and are not responsible for any damage caused due to tampering of the product under above conditions. |
|||

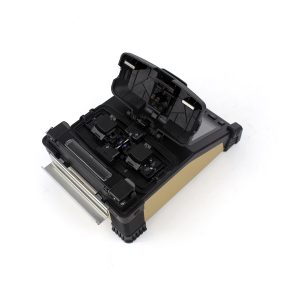

Fusion Splicer INNO A3[/caption]
