ETCR3620 Portable Milliohmmeter
ETCR3620 Portable Milliohmmeter DC Low Value Resistance Tester
ETCR3620 Portable Milliohmmeter, juga dikenal sebagai Dc Low Resistance Tester, DC Resistance Tester, Ohm Meter, yang digunakan untuk mengukur resistansi kawat pada kabel, resistansi kontak sakelar, konektor dan relai, resistansi DC rendah pada kumparan belitan, motor dan resistansi saluran transformator, resistansi sambungan antara bagian paku keling logam dan komponen logam, dan resistansi sambungan antara konduktor yang terhubung pada tiang jaringan tanah. Ini banyak digunakan di perusahaan industri dan pertambangan, stasiun pemeriksaan kualitas konstruksi, pengawasan perusahaan, unit konstruksi,, perusahaan proteksi petir, departemen tenaga listrik dan pabrik mesin kapal, dll.

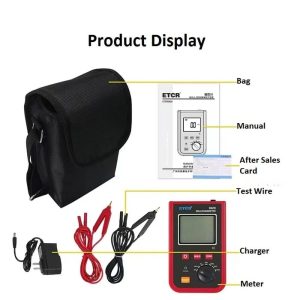

Miliohmmeter Portabel ETCR3620 terdiri dari host dan kabel uji. Instrumen ini mengadopsi teknologi mikroprosesor dan metode 4-kawat presisi untuk menguji, akurasi tinggi, dengan teknologi pengukuran metode jembatan listrik lengan ganda, bukan meminta untuk menguji resistansi saluran. Alat uji resistansi: 200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, arus uji maks: 1,2A. dilengkapi dengan baterai lithium berkapasitas besar, fungsi penyimpanan, mudah dioperasikan dan dibawa.
1.Portable structure design, It is easy to carry and simple to operate.
2.Precision 4-wire method to test, high accuracy and Min. Resolution: 0.1mΩ
3.Adopt with double-arm electric bridge method measurement technology, not request to test line resistance
4.Memory: data storage 200 groups
5.Large capacity lithium battery
| Gears | Accuracy | Resolution | Max. Test Current |
| 200mΩ | ±0.1%FS±15dgt | 0.1mΩ | 1.2A |
| 2Ω | 1mΩ | 510mA | |
| 20Ω | 0.01Ω | 210mA | |
| 200Ω | 0.1Ω | 210mA | |
| 2kΩ | 1Ω | 21mA | |
| 20kΩ | 10Ω | 2.1mA |
2.Technical Specifications
| Power Supply | DC 7.4V 2600mAh lithium battery |
| Display Mode | Display area: 58.5mm×46mm |
| Test Current | ≤1.2A |
| Detection Mode | Precision four-wire method, 2 A/D simultaneous detection |
| Resistance Measurement Range | 1mΩ~20.0kΩ |
| Test Gear | 6 Gears: 200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ |

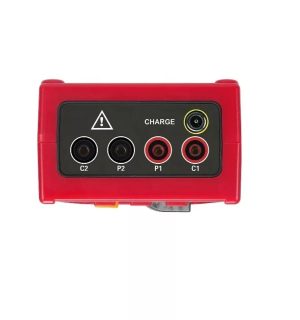

| Test Interface | C1 current positive, C2 current negative, P1 voltage positive, P2 voltage negative |
| Test Time | 2 seconds/time |
| Memory | Yes, power down or replace the battery will not lose the data (200 groups) |
| Test Indication | The blue TESTING light flickers during the test |
| Test Wire | 2 sets: Red/Black each 1 set, length 0.8m |
| Backlight | Yes, suitable to the dim place |
| Overflow Display | Over-range overflow function: “OL" symbol display |
| Low Voltage Indication | When the low battery voltage symbol is displayed. remind to replace the battery |
| Host Size | 159mm×100mm×66mm |
| Weight | Instrument: about 460g (include battery); total weight: about 640g (include accessory) |
| Line Voltage | Should be avoided (the line cannot be measured with electricity, which may damage the instrument) |
| Withstand Voltage | AC 3700V/rms(between housing and screws) |
| Suitable Safety Standard | IEC61010-1, CAT Ⅲ 600V, pollution level 2, JJG724-1991 "DC Digital Ohmmeter Verification Procedures", JJG166-1993 "DC Resistor Verification Procedures", "DL/T967-2005 Loop Resistance tester and DC Resistance Rapid tester Verification Procedures" |
| Working Temperature & Humidity | -10℃~40℃; below 80%rh |
| Store Temperature & Humidity | -10℃~60℃; below 70%rh |

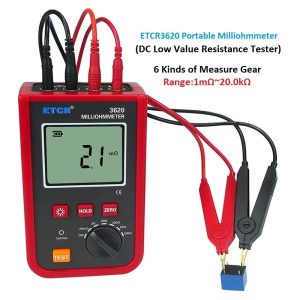

ETCR3620 Portable Milliohmmeter[/caption]
