Digital Theodolite Alpha Geo DE-2B ORIGINAL
Digital Theodolite Alpha Geo DE-2B
Digital Theodolite Alpha Geo DE-2B made in china dengan tingkat akurasi 2 detik dan magnification 30 x, membuat pekerjaan anda menjadi lebih mudah dan akurat. Alpha Geo DE-2B yang kami tawarkan original dan Bergaransi selama 1 Tahun.
Digital Theodolite Alpha Geo DE-2B adalah alat ukur tanah yang digunakan untuk menentukan tinggi tanah dengan sudut mendatar dan sudut tegak. Di dalam theodolit sudut yang dapat di baca bisa sampai pada satuan sekon per (detik).
Spesifikasi Digital Theodolite Alpha Geo DE-2B
| Model | DE-2B | |||
| Telescope | Image | Erect | ||
| Magnification | 30x | |||
| Effective Aperture | 45mm | |||
| Resolving Power | 3″ | |||
| Field of View | 1°30′ | |||
| Minimum Focusing Distance | 1.4m | |||
| Stadia Ratio | 100 | |||
| Stadia Constant | 0 | |||
| Tube Length | 157mm | |||
| Angle Measurement | Reading System | Absolute Encoding | ||
| Diameter of Circle(VHz) | 79mm | |||
| Minimum Reading | 1″/5″(Selectable) | |||
| Accuracy | 2″ | |||
| Horizontal Angle | Dual | |||
| Vertical Angle | Dual | |||
| Display | (LCD) Display Type | 2 sides | ||
| Laser Pointer | Laser Range | Be Seen Up to 100 Meters Away | ||
| Memory | Internal Memory | Space for 256 Pairs of H. & V. Angle | ||
| Level Sensitivity | Plate Level | 30″/2mm (30″per 2mm) | ||
| Circular Level | 10″/2mm (10″per 2mm) | |||
| Auto Vertical Compensator | System | Liquid-Electric Detection | ||
| Working Range | ±3′ | |||
| Accuracy | 1″ | |||
| Optical Plummet Telescope | Image | Erect | ||
| Magnification | 3x | |||
| Focusing Range | 0.5m – ∞ | |||
| Field of View | 5° | |||
| Physical Characteristics | Operating Temperature | ﹣20℃ ～﹢50℃ | ||
| Internal Power Supply | Rechargeable Ni-H battery/ AA battery | |||
| Voltage | 6 VDC | |||
| Operating Time | 10 hours | |||
| Dimension | 145 × 318 × 179 (mm) | |||
| Weight | 5.2 kg |
Kelengkapan Alpha Geo DE-2B
1 Buah Alumunium Tripod
1 Buah Rambu Ukur

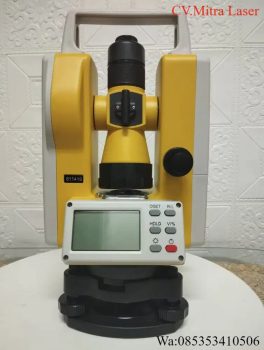

Digital Theodolite Alpha Geo DE-2B[/caption]
